Frame Mounted Adjustable Highway Peg Mount With or Without Foot Pegs
60100
Regular price $249.99Long proven as the most stable and comfortable peg mounts in the industry, Ciro’s Adjustable Highway Peg Mounts have revolutionized how highway peg mounting adds to your riding pleasure. We started at the frame and created a new, stronger mounting system that allows for outstanding adjustability. Looks matter, so this design integrates into the floorboard area without being obtrusive. These fold up out of the way and are the best option when you have fairing lowers. For our taller friends, we have added even more comfort and adjustability with our new extended arm. This mounting system works very well on Tri-Glides too! Available with CMX footpegs, Rail footpegs, Twin Rail footrest or without footpegs.
**Please note: We have found that some H-D Defiance Rider Floorboards (P/N 50500640) will have to be lightly modified on the bottom side of the board to work with Ciro P/N 60100 & 60120. Please feel free to contact us for more details.
Some aftermarket exhausts use floorboard spacers. If you have aftermarket exhaust check the right side floorboard mounts. If they have spacers installed you will need one more to install the Ciro Frame Mounted HWY Peg Mounts. You might also need a longer bolt (3/8-16) to go with the spacer. The spacer and bolt can be found at most hardware stores or from your exhaust manufacturer. The additional spacer is needed because the Ciro design uses one more bolt than the stock front floorboard mount. Please feel free to contact Ciro if you have any questions 715-808-0027.
Features
- Fully adjustable
- Replaces factory front floorboard mount, no drilling or modifications needed for installation
- Work with or without engine guards
- Mounts to factory bolt locations
- Available options:
- Black or chrome arms and clevises
- No footpegs or with CMX footpegs, Rail footpegs or Twin Rail footrest (Footpegs not included in kits 60100, 60120, 60600 or 60620)
- Already have your favorite footpegs? Works with OEM and aftermarket footpegs with Harley-Davidson style 1/2" male mount.

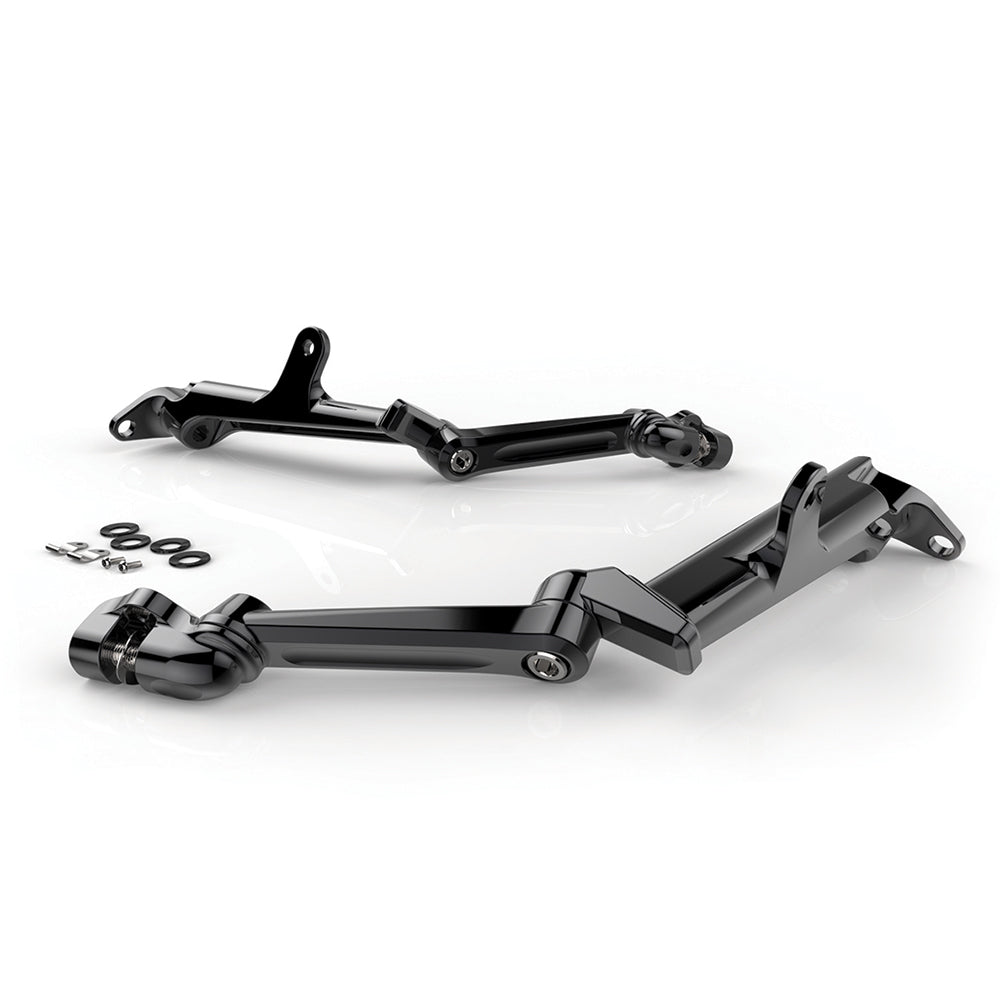

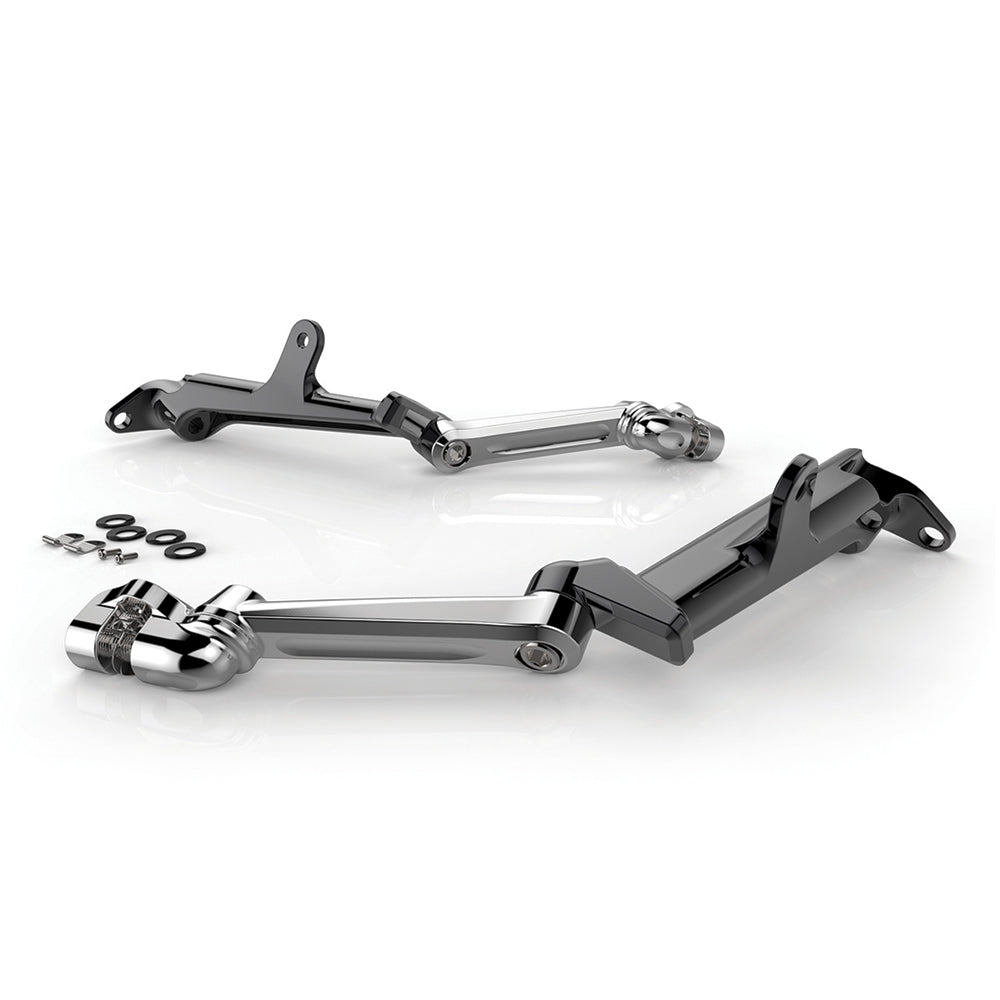

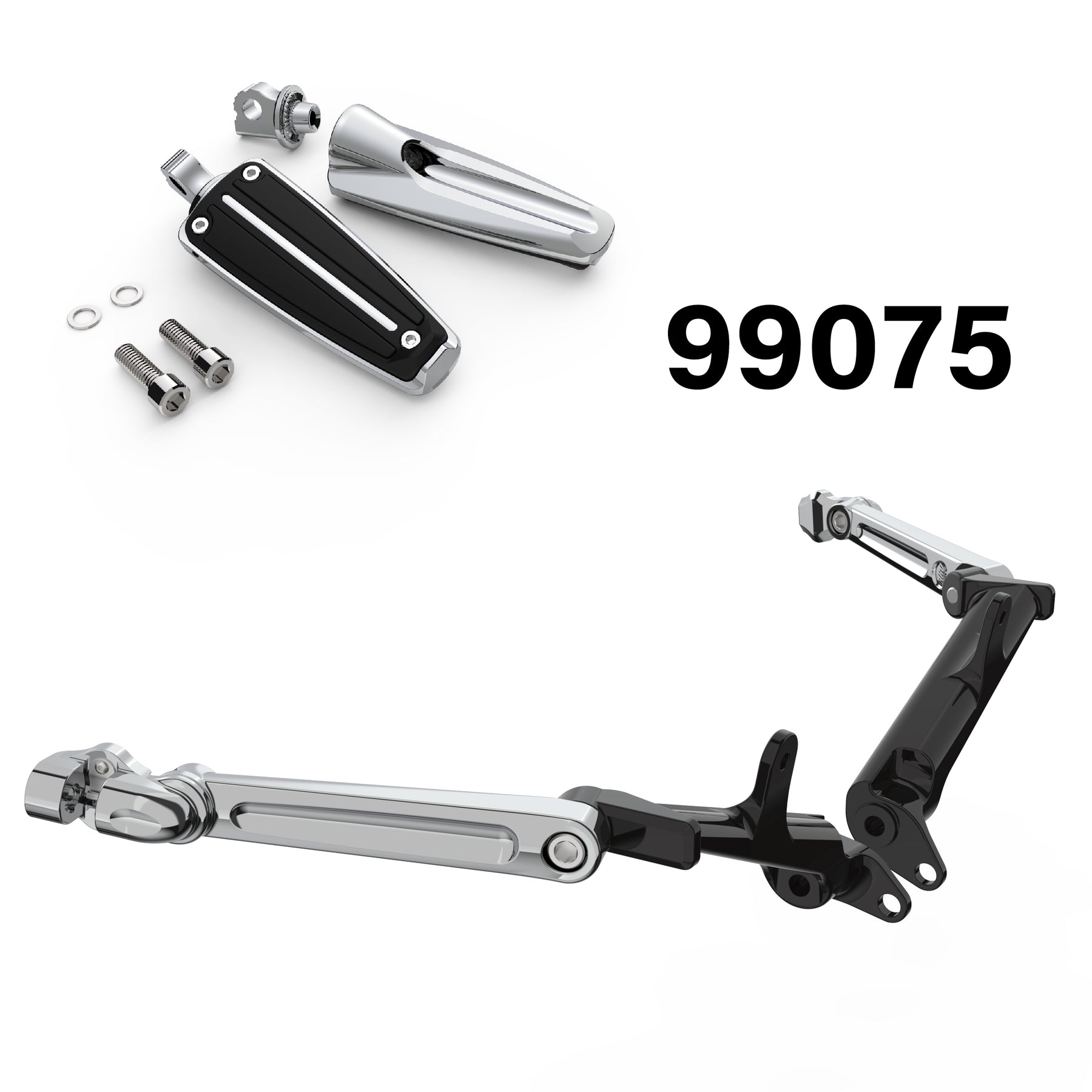

- Kit includes:
- Left and right floorboard mounts
- Left and right arms
- Left and right clevises
- All necessary hardware for completing installation
- Works with Ciro footpegs, footrest or floorboards:
- Rail Footpegs 61002 or 61022
- CMX Footpegs 61006 or 61026
- Twin Rail Footrests 61405 or 61425
- Twin Rail Floorboards 60221 or 60201
- ASR Floorboards 60205 or 60225
- 3 Year warranty
- U.S. Patent No. D811,947
- Standard or extended length available (1 1/2" longer than standard version) 60120 & 60100
- Please note: We have found that some H-D Defiance Rider Floorboards (P/N 50500640) will have to be lightly modified on the bottom side of the board to work with Ciro P/N 60100 & 60120. Please feel free to contact us for more details.
- Some aftermarket exhausts use floorboard spacers. If you have aftermarket exhaust check the right side floorboard mounts. If they have spacers installed you will need one more to install the Ciro Frame Mounted HWY Peg Mounts. You might also need a longer bolt (3/8-16) to go with the spacer. The spacer and bolt can be found at most hardware stores or from your exhaust manufacturer. The additional spacer is needed because the Ciro design uses one more bolt than the stock front floorboard mount. Please feel free to contact Ciro if you have any questions 715-808-0027.
- Drag Specialties part numbers:
- 1621-0701 (60120)
- 1621-0700 (60100)
- 1624-0392 (60600)
- 1624-0393 (60620)
Fitment
- Fits '09-up Harley-Davidson Touring models with driver floorboards including:
- Electra Glide FLHT
- Electra Glide Standard FLHT
- Ultra Classic FLHTCU
- Ultra Classic Low FLHTCUL
- Ultra Limited FLHTK
- Ultra Limited Low FLHTKL
- CVO Limited FLHTKSE**
- CVO Road Glide Ultra FLTRUSE**
- CVO Road Glide**
- Street Glide FLHX
- Street Glide Special FLHXS
- CVO Street Glide
- Road Glide FLTR
- Road Glide FLTRX
- Road Glide Ultra FLTRU
- Road Glide Custom FLTRX
- Road Glide Special FLTRXS
- Road Glide Limited FLTRK
- Road King FLHR
- Road King Special FLHRXS
- Freewheeler Trike FLRT
- Tri-Glide FLHTCUTG
Models that do not have the factory engine guard installed my need to supply the factory mounting hardware (not included in kit) that is used to attach the engine guard to the frame.
Models with aftermarket headers or floorboard spacers:
Some aftermarket exhausts use floorboard spacers. If you have aftermarket exhaust check the right side floorboard mounts. If they have spacers installed you will need one more to install the Ciro Frame Mounted HWY Peg Mounts. You might also need a longer bolt (3/8-16) to go with the spacer. The spacer and bolt can be found at most hardware stores or from your exhaust manufacturer. The additional spacer is needed because the Ciro design uses one more bolt than the stock front floorboard mount. Please feel free to contact Ciro if you have any questions 715-808-0027.
**Please note: We have found that some H-D Defiance Rider Floorboards (P/N 50500640) will have to be lightly modified on the bottom side of the board to work with Ciro P/N 60100 & 60120. Please feel free to contact us for more details.
Video
FAQ
- Q: Will the frame mounted highway peg mount work with aftermarket floorboard spacers?
- A: No. Our kit is designed to replace the factory front mounting bracket that is bolted directly to the frame mount. Please contact our tech department for more details.
- Q: Will the frame mounted highway pegs work with my H-D Defiance Floorboards (P/N 50500640)
- A: Yes. We have found that most of the Defiance Floorboards will bolt on without any issues. Some of the floorboards have to be filed down just a little where the floorboard and our mounting bracket meet to get them to lay flat.
- Q: What are the lengths of the standard and extended highway pegs?
-
A: Standard arm is 4.0", extended arm is 5.5"
-
Q. I have an aftermarket exhaust that needed floorboard spacers to make it fit. Will the spacers affect the fitment of these?
- A. Yes. Some aftermarket exhausts use floorboard spacers. If you have aftermarket exhaust check the right side floorboard mounts. If they have spacers installed you will need one more to install the Ciro Frame Mounted HWY Peg Mounts. You might also need a longer bolt (3/8-16) to go with the spacer. The spacer and bolt can be found at most hardware stores or from your exhaust manufacturer. The additional spacer is needed because the Ciro design uses one more bolt than the stock front floorboard mount. Please feel free to contact Ciro if you have any questions 715-808-0027.
Instruction
Models with aftermarket headers or floorboard spacers: Some aftermarket exhausts use floorboard spacers. If you have aftermarket exhaust check the right side floorboard mounts. If they have spacers installed you will need one more to install the Ciro Frame Mounted HWY Peg Mounts. You might also need a longer bolt (3/8-16) to go with the spacer. The spacer and bolt can be found at most hardware stores or from your exhaust manufacturer. The additional spacer is needed because the Ciro design uses one more bolt than the stock front floorboard mount. Please feel free to contact Ciro if you have any questions 715-808-0027.
Installation time is 90 minutes or less*
*All installation times are based on average installations by the Ciro staff. Installation time my vary depending on skill set, condition of motorcycle and tools available to the installer.
